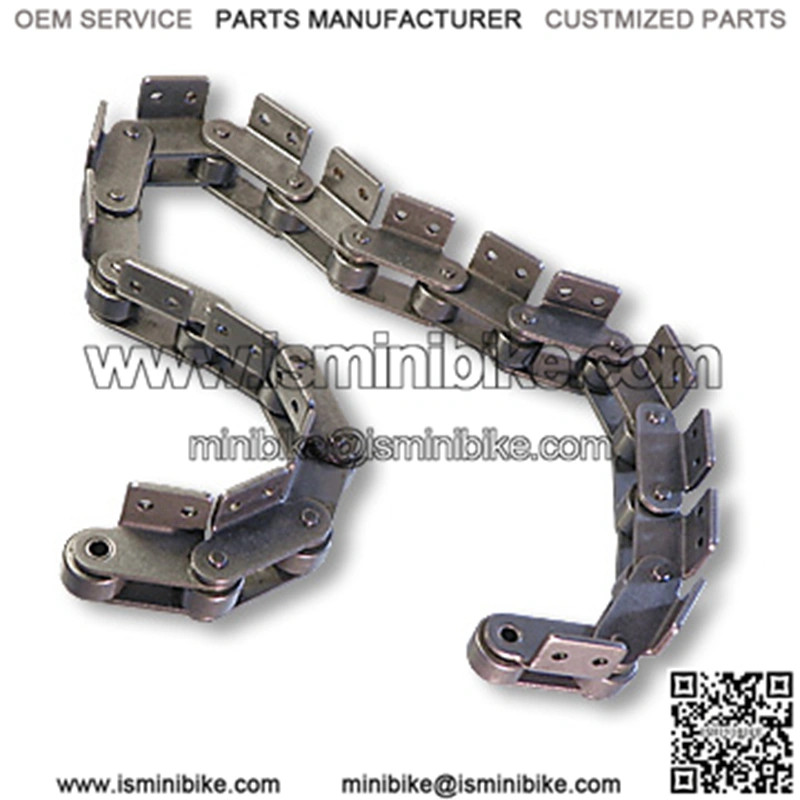

Attachment Chain
DESCRIPTION/
CHAIN SIZE
ATTACHMENT &
SPACING
PART NO.
CONNECTOR
LINKS
#40-1
A-1 Every 4th pitch on P/L
4269
4188
#40-1
A-2 Every 4th pitch on P/L
4276
4180
#40-1
SK-1 Every 4th pitch on P/L
4275
”
#40-1 SS
K-1 Every other pitch on P/L
4274
4192
#40-2
A-2 Every 4th pitch on P/L
4267
4195
#50-1
A-1 Every other pitch on P/L
4263
4181
#50-1
A-2 Every 4th pitch on P/L
4264
4190
#50-2
A-2 Every other pitch on P/L
4265
4184
#50-2
A-2 Every 4th pitch on P/L
4266
4184
#60-1
K-1 Connecting Link
”
4183
#60-1 SS
K-1 Connecting Link
”
4182
#C2052
A-2 Every other pitch on P/
4268
4189
#C2062 H
A-2 every pitch
4262
4194
Attachment Chain ” Strength & Dimensions
Chain Part Number
Pitch
Roller Diameter
Between Inner Plates
Pin Diameter
Average Tensile
Lbs. per foot*
#40-1
A-1 every 4th pitch on P/L
1/2
.312
5/16
.156
3,700
.50
#40-1
A-2 every 4th pitch on P/L
3,700
.50
#40-1
SK-1 every 4th pitch on P/L
3,700
.50
#40-1 SS
K-1 every other pitch on P/L
3,700
.50
#40-2
A-2 every 4th pitch on P/L
7,300
.93
#50-1
A-1 every other pitch on P/L
5/8
.400
3/8
.200
6,100
.78
#50-1
A-2 every 4th pitch on P/L
6,100
.75
#50-2
A-2 every other pitch on P/L
12,200
1.56
#50-2
A-2 every 4th pitch on P/L
12,200
1.49
#C2052
A-2 every other pitch on P/L
1-1/4
.750
3/8
.200
6,100
.97
#C2062 H
A-2 every pitch
1-1/2
.875
1/2
.234
7,600
1.53
